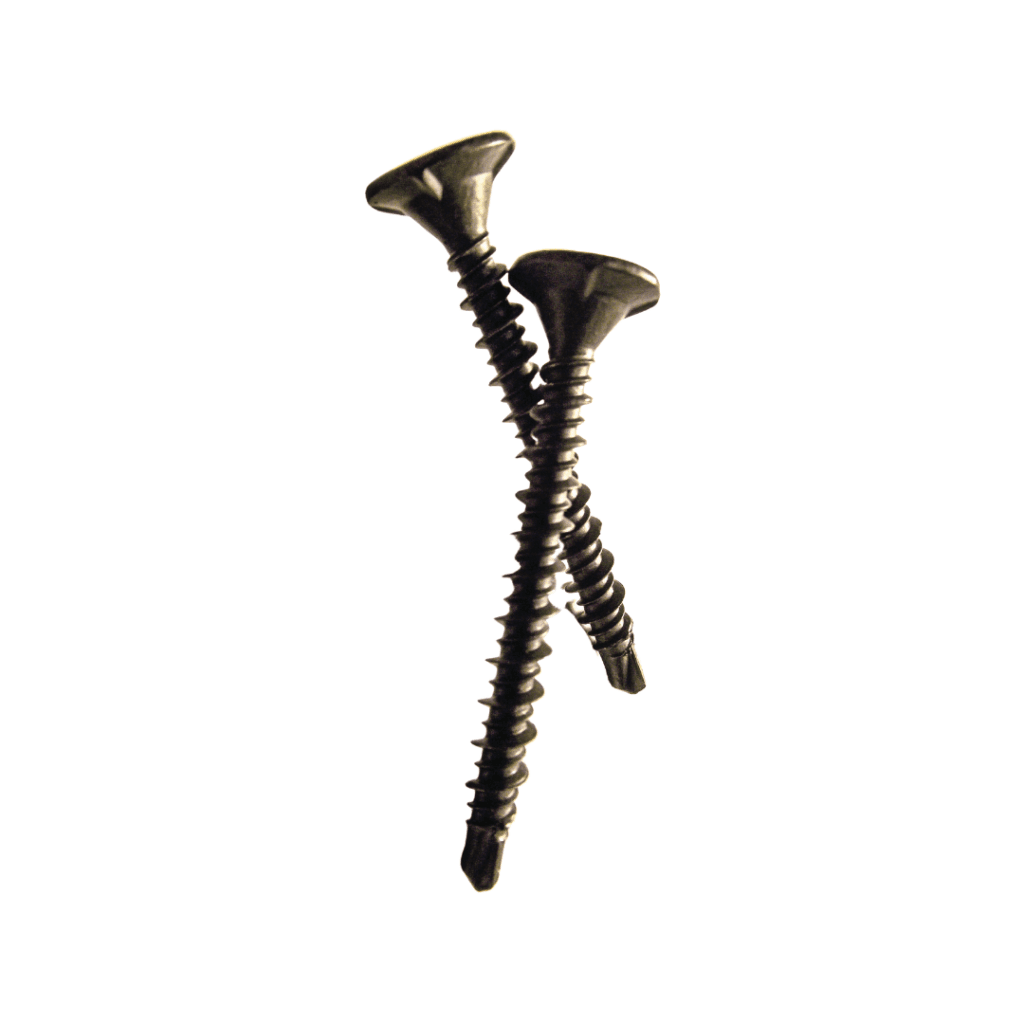

Evolution Cementitious Board Screw

For fixing cementitious and other dense boards to timber and metal substrates.

  • Head style: Double counter sunk with nibs
  • Recess type: Phillips No.2
  • Thread type: Evolution Universal Thread Carbon Steel
  • Drill point: Sharp point
  • Material grade: A2 / Carbon Steel / Bi-metal EN1.4301 / SEA304
  • Effective Thread Length: Fully threaded

Countersunk nibs will act to lessen reaction stresses in the substrate material. Countersunk nibs ensure flush finish even in very dense board environments.

High grade, medium carbon steel (C1022). Super strong neck eliminates head snap. Self-drilling and hi-lo thread-form give rapid advancement. Self-drilling, hi-lo thread for use in track from 0.6 to 2.5mm.

Product Range

Supplier CodeSize / Nom. Length (mm)Box CartonDrill Cap (mm)
WHX324.2 x 322006,4000.6-2.5
WHX424.2 x 422004,8000.6-2.5
WHX604.2 x 602004,8000.6-2.5
WHX804.2 x 802003,2000.6-2.5
WHX1004.2 x 100 2003,2000.6-2.5
WHL081584.2 x 422004,8000.6-2.5

Technical Information

Cementitious Board Screw Datasheet
